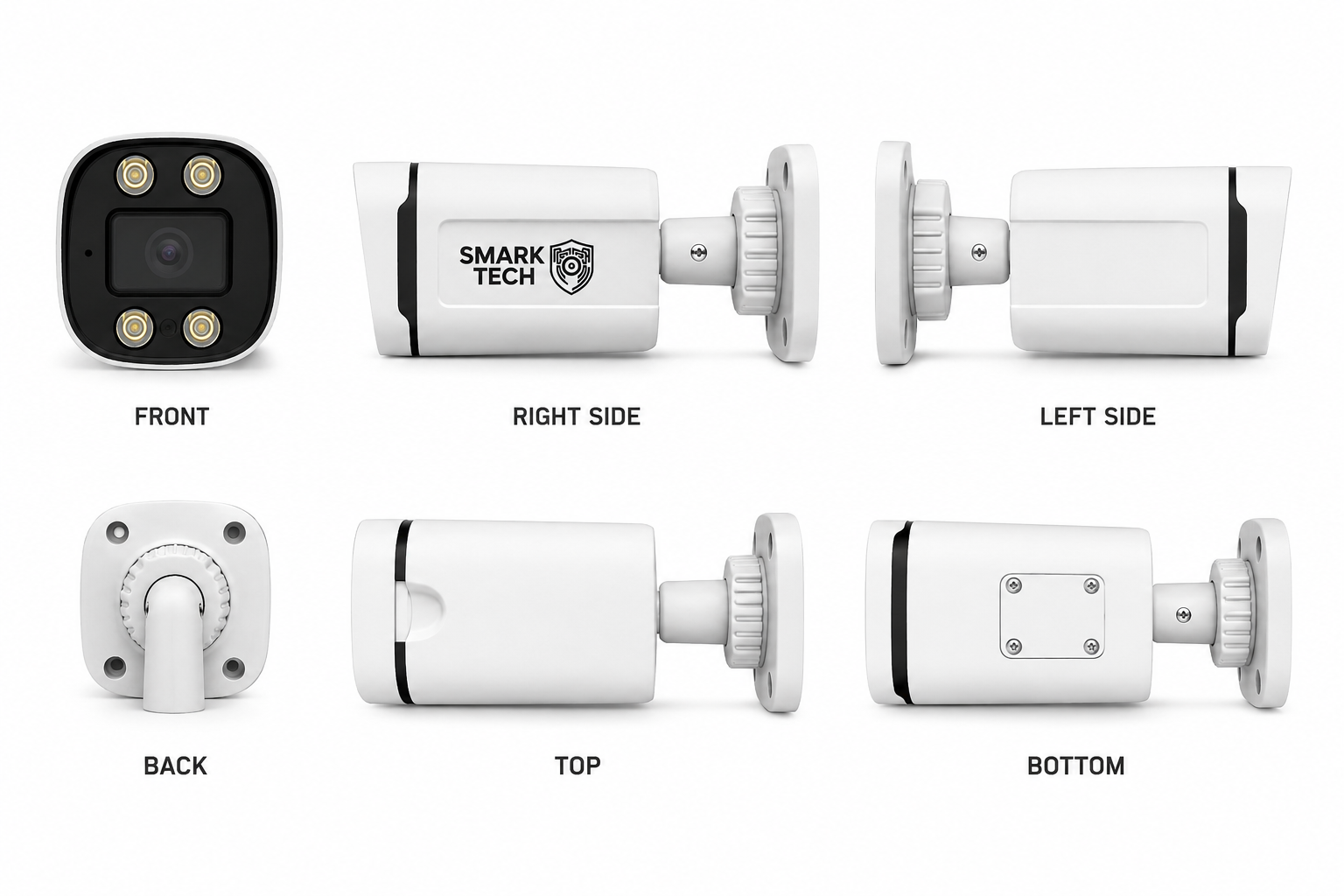

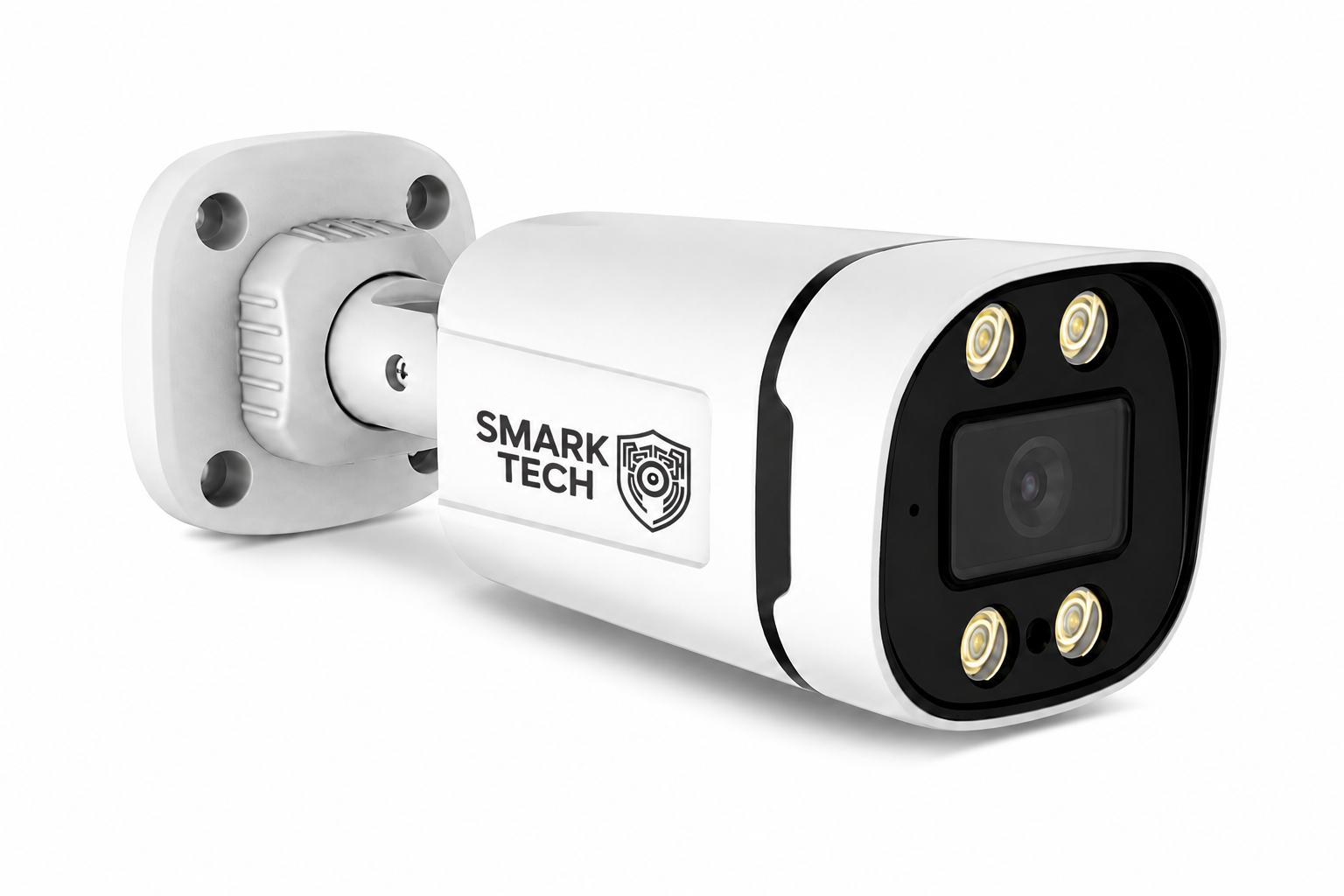

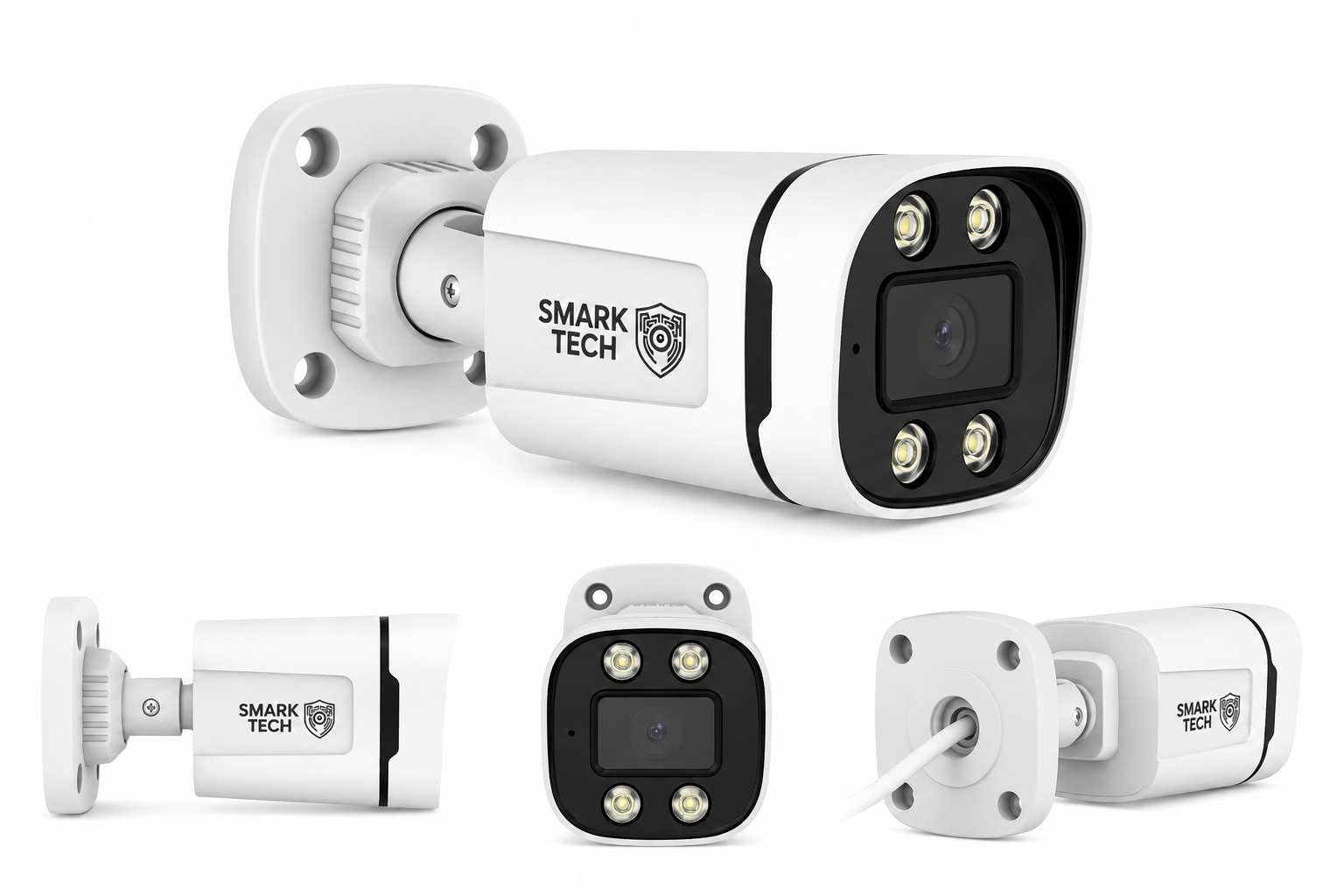

SMArk 4MP IP Bullet, Color Night Vision, Starlight (4mm)
SE-EIP-VB-4001NL4
Description
4MP Network Bullet Camera - 30Mtr.
4 MP PS CMOS Image Sensor (0.9071 centimeters)
Max. 4MP @1–25/30fps
Instastream, H.265, H.264, H.264H, H.264B, MJPEG
Support stream
Support Built-in Mic
4.0mm Lens
DWDR, Day/Night (ICR), 3D NR, ROI, AWB, AGC, BLC, HLC, Digital watermarking
IR Range of 30 Mtr., PoE, IP67
Product Overview
Parameter | Specification |
|---|---|
Product Name | SE-EIP-VB-4001NL4 |
Board Type | Network IP Camera PCB |
Processor | IPC |
CPU Architecture | ARM Cortex-A7 32-bit |
Operating System | Embedded Linux |
Video Compression | H.265 / H.264 / MJPEG |
Maximum Resolution | Up to 4MP (2592 × 1944) |
Frame Rate | Up to 30 FPS |
ISP | Built-in Image Signal Processor |
AI Features | Human Detection, Motion Detection |
Video Features
Parameter | Specification |
|---|---|
Encoding | H.265 / H.264 |
Dual Stream | Supported |
Bitrate | 64 Kbps–8 Mbps |
Image Adjustment | Brightness, Contrast, Saturation, Sharpness |
White Balance | Auto / Manual |
Exposure | Auto |
Day/Night | Auto IR-CUT |
Digital WDR | Supported |
3D DNR | Supported |
BLC | Supported |
Defog | Supported |
Mirror / Flip | Supported |
Privacy Mask | Supported |
OSD | Supported |
Network
Parameter | Specification |
|---|---|
Ethernet | 10/100 Mbps RJ45 |
Protocols | TCP/IP, UDP, DHCP, DNS, HTTP, HTTPS, RTSP, RTP, RTCP |
ONVIF | Profile S |
RTSP | Supported |
Web Browser | IE / Chrome / Edge (Firmware Dependent) |
Audio
Parameter | Specification |
|---|---|
Audio Codec | G.711A / G.711U |
Microphone | External MIC |
Speaker | Optional |
Two-way Audio | N/A |
Hardware Interfaces
Interface | Description |
|---|---|
RJ45 | Ethernet |
DC Input | 12V DC |
MIPI Connector | Camera Sensor |
SPI Flash | Firmware Storage |
DDR3 | System Memory |
UART | Debug |
Reset | Factory Reset |
IR LED | Infrared Board |
IR-CUT | Day/Night Control |
GPIO | General Purpose I/O |
MIC | Audio Input |
Speaker | Audio Output |
Status LED | Power/Network |
Electrical Characteristics
Parameter | Value |
|---|---|
Input Voltage | DC 12V ±10% |
Core Voltage | 1.2V |
IO Voltage | 3.3V |
DDR Voltage | 1.5V |
Typical Power Consumption | <5 W |
